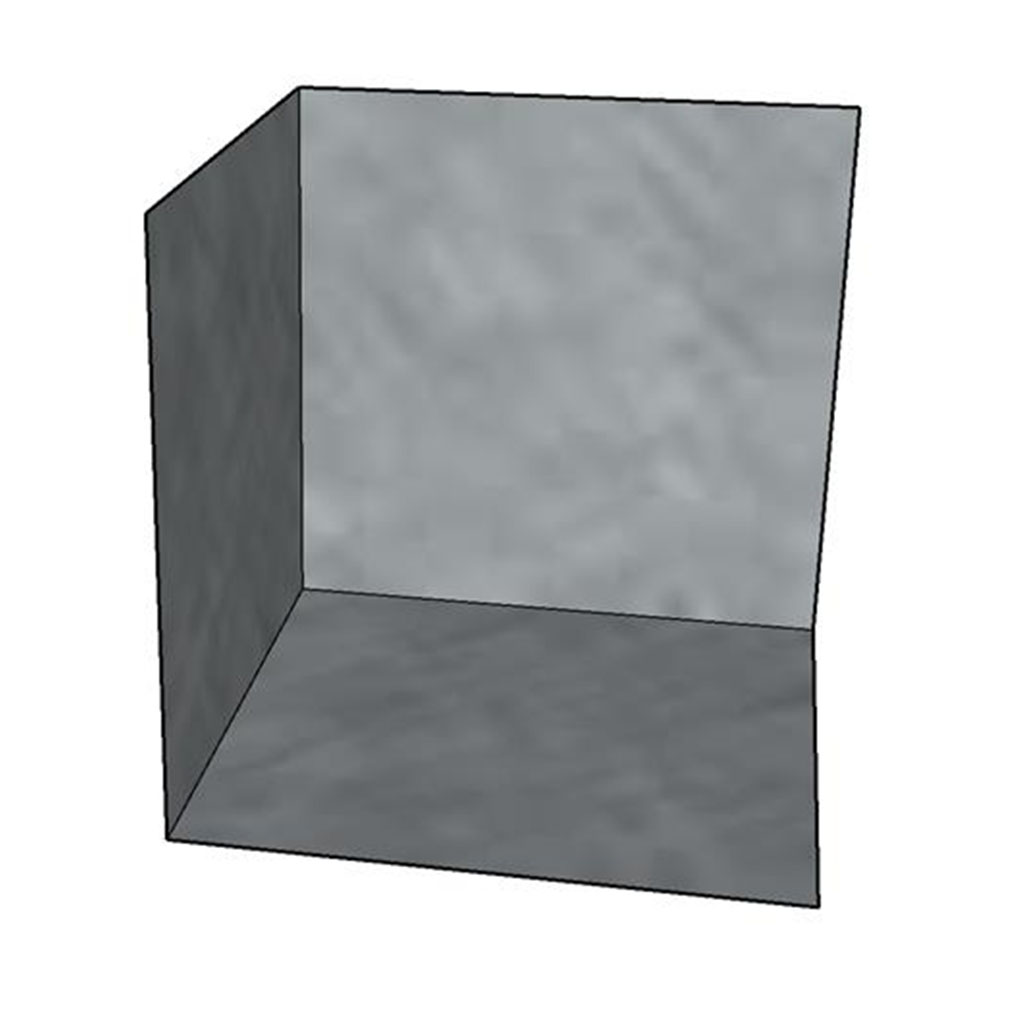

4″ x 4″ x 4″ Tall End Dam

Cheney Flashing’s stainless steel corners and end dams are installed beneath straight length or flexible flashings at inside and outside corner conditions and flashing terminations.  Utilizing a rigid stainless corner and end dam system is the standard for the best moisture penetration control.
Stainless Steel Specifications and Feature
  • All corners and end dams are fabricated utilizing type 304 stainless steel.  Type 316 stainless steel available upon request.
  • Metal thickness is 26ga (.018″).
  • All joints are spot-welded and soldered, water-tight, utilizing a 50% tin / 50% zinc solder.
  • Cheney-supplied stainless steel meets all Federal specifications – ASTM A240/A240M, ASTM A666, and ASTM A480/A480M.
  • Cheney-supplied stainless steel originates from mills located in the Eastern United States.
  • 300 series stainless steel generally includes 75% – 85% post-consumer recycled content and is 100% recyclable with no loss of quality.
  • Cheney Flashing’s corners and end dams are fabricated out of its Beltsville, MD and Houston, TX facilities.


4″ x 4″ x 4″ tall

Also available in copper, galvanized or aluminum.
